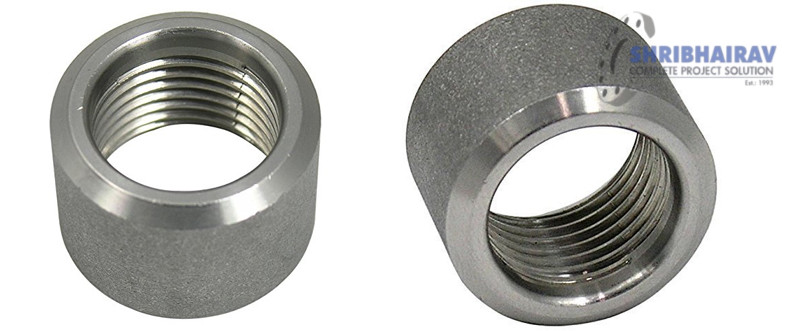

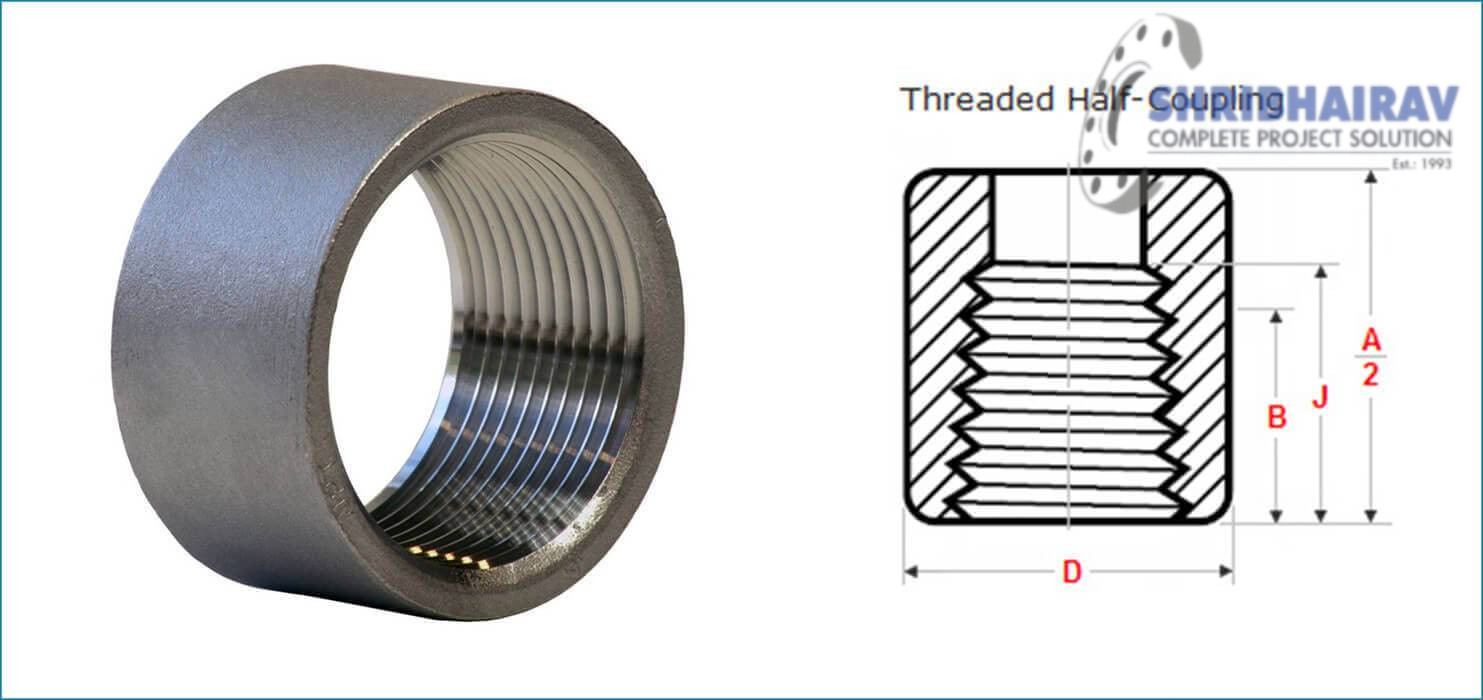

Threaded / Screwed Half Coupling

High Quality Screwed Half Coupling, Forged Threaded Half Coupling, Threaded Half Coupling Dimensions, ASTM A182 SS Threaded Half Coupling, Threaded Fittings Coupling, Alloy Steel Forged Screwed Half Coupling, Screwed Half Coupling Sizes, Screwed Half Coupling Size Chart, Screwed Half Coupling Price, Screwed Half Coupling Fittings, ASME B16.11 Threaded Half Coupling, Nickel Alloy 200 Half Coupling Manufacturer in Mumbai, India.

Forged Half Coupling, Stockist of Stainless Steel Threaded Half Coupling, SS 310 Threaded Half Coupling Dealer, Forged Screwed Half Coupling, Threaded Forged Half Coupling, Global Supplier of ANSI B16.11 Forged Threaded Half Coupling, ASME B16.11 CS Threaded Half Coupling, ASME B16.11 Half Coupling Threaded, 2 Threaded Half Coupling, ASME B16.11 Forged Threaded Coupling, Forged Screwed Half Coupling 3000LB Threaded in India.

A half coupling is a pipe fitting connecting two pipes with different diameters. It is designed to be welded onto one end of a pipe while the other remains open for a connection to a larger or smaller pipe. Half couplings are commonly used in piping systems where a transition between pipe sizes is required, enabling a secure and leak-free joint.

There are different types of half couplings available to suit specific applications. These include threaded half couplings, socket weld half couplings, and butt weld half couplings. Threaded half couplings have internal threads to connect with threaded pipes, while socket weld half couplings have a socket to accommodate the pipe end for welding. Butt weld half couplings are welded directly onto the pipe end using butt welding techniques. Each type of half coupling offers different installation methods and is selected based on the specific requirements of the piping system.

A threaded coupling is a pipe fitting connecting two pipes with external threads. It typically consists of two female threaded ends that can be screwed onto the corresponding male threads of the pipes. Threaded couplings provide a reliable and convenient method for joining pipes in systems that require frequent disassembly and reassembly or where welding is not feasible.

Half couplings are used in various industries and applications where a connection between pipes of different sizes is needed. They are commonly found in plumbing systems, oil and gas pipelines, chemical processing plants, and water treatment facilities. Half couplings allow for the transition from a larger pipe to a smaller one, providing flexibility in connecting pipes of different diameters while ensuring a secure and leak-free connection.

At Shribhairav Metal Corporation, we specialize in providing top-quality flanges that play a pivotal role in numerous piping systems, offering a blend of reliability and efficiency. Along with SORF Flanges, we manufacture Flanges, Weld Neck Flanges, & so on.

Hastelloy C22 Forged Coupling, MSS SP-79 and MSS SP-83 Threaded Half Coupling, Inconel Forged Screwed Half Coupling, BS3799 Screwed Forged Half Coupling Wholesaler, 3000LB Threaded Half Coupling, Best Price of Duplex Steel Threaded Coupling, Stockholder Of Forged Threaded Half Coupling, Copper Nickel Threaded Coupling Exporter, Alloy 20 Threaded Coupling Traders in India.

Standard Specification For Forged Threaded / Screwed Half Coupling

Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799

Size : 1/8" NB TO 4" NB

Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS

Form : Couplings, Half Couplings, Reducing Coupling.

Material & Grades of Forged Threaded / Screwed Half Coupling :

Stainless Steel Forged Threaded / Screwed Half Coupling :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Steel Forged Threaded / Screwed Half Coupling :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Steel Forged Threaded / Screwed Half Coupling :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Steel Forged Threaded / Screwed Half Coupling :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Threaded / Screwed Half Coupling :
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Threaded / Screwed Half Coupling :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

ASME B16.11 Forged Threaded / Screwed Half Coupling Available Types

Get a best quote for Buttweld Reducing / Unequal Cross, We Keep Bulk Stock at our stockyard, contact us to request a quote.

Forged Threaded / Screwed Half Coupling Application

ASME B16.11 Threaded Half Coupling are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Forged Screwed Coupling through a worldwide network of stock-keeping branches. These Forged Threaded Coupling is use in various industries like :

Forged Threaded / Screwed Half Coupling Application Industries
